Quick Start

This page covers the three basic tasks for a first-time operator: start Watchdog, sign in to the Web page, and confirm that TGateway is running. Studio is optional. It is used for project development and remote publishing; a normal gateway does not need Studio to run.

Services and access addresses

Service	Default address	Purpose
Studio (optional)	http://<server-ip>:5100	Create, import, validate, and remotely publish projects. It is not required for normal gateway runtime.
TGateway	http://<gateway-ip>:6100	Configure collection, variables, rules, alarms, forwarding, and permissions.
Watchdog	http://<gateway-ip>:6200	Start and supervise TGateway, and manage projects and backups.

Watchdog and TGateway run on the gateway device. Watchdog starts and supervises the TGateway process. Install Studio separately on an engineer's computer only when you need centralized project development or remote publishing.

Before you start

Check	Requirement
Operating system	Use a product-supported Windows or Linux system.
Runtime	Standard TGateway, Studio, and Watchdog packages require both .NET 10 Runtime and .NET 10 ASP.NET Core Runtime. Use the download center to select the components for your operating system and architecture. Self-contained or AOT packages do not require these runtimes to be installed separately.
Ports	Confirm that TGateway port 6100 and Watchdog port 6200 are available. Check port 5100 only when Studio is installed. Allow the ports through the firewall when remote access is required.
Watchdog file	Windows package: TGateway.Watchdog.exe; Linux package: TGateway.Watchdog.
Studio file (optional)	Windows package: TGateway.Studio.exe; Linux package: TGateway.Studio. Keep it with the other Studio files.
Runtime directories	Keep GatewayApp, Projects, and Configuration beside the programs, and give the runtime account read/write access.
Permissions	Use an administrator account to install a Windows service. On Linux, grant execute permission to the programs.
Default account	The bundled default account is admin with password 111111. Change it immediately after the first login.

Start the gateway

Start Watchdog first. Confirm both Watchdog and TGateway are reachable before configuring automatic startup.

Windows direct start

Open PowerShell on the gateway device and run Watchdog from its release directory:

Set-Location 'D:\TGateway\WatchDog'
.\TGateway.Watchdog.exe

Replace the example directory with the actual installation directory. Start the program from its own directory; do not copy only the executable to another location.

When Studio is needed, start it separately on the engineer's computer:

Set-Location 'D:\TGateway\Studio'
.\TGateway.Studio.exe

Linux direct start

On the gateway device, run:

cd /opt/TGateway/WatchDog
chmod +x TGateway.Watchdog
./TGateway.Watchdog

Replace /opt/TGateway with the actual installation directory. Start Studio separately only when it is needed:

cd /opt/TGateway/Studio
chmod +x TGateway.Studio
./TGateway.Studio

Watchdog starts TGateway from the adjacent GatewayApp directory. If no project has been applied yet, sign in to Watchdog to upload and apply a project, or publish one from Studio.

Confirm startup

1. Open http://<gateway-ip>:6200 and confirm that the Watchdog login page appears.
2. Sign in to Watchdog and check the dashboard. TGateway should show a running state.
3. Open http://<gateway-ip>:6100 and confirm that the TGateway login page appears.
4. If Studio is installed, open http://<server-ip>:5100 and confirm that its login page appears.

Install as a Windows service

After direct start works, open PowerShell as administrator. Fill in the actual Watchdog path before creating the service:

$watchdogExe = 'D:\TGateway\WatchDog\TGateway.Watchdog.exe'

sc.exe create TGatewayWatchdog binPath= "`"$watchdogExe`"" start= auto DisplayName= "TGateway Watchdog"
sc.exe start TGatewayWatchdog
Get-Service TGatewayWatchdog

When Get-Service shows Running, open the Watchdog and TGateway addresses again. If the service does not start, check the executable path, working-directory permissions, and the Windows Event Viewer. Create a separate Studio service only when Studio must run continuously.

Install as a Linux systemd service

After direct start works, create /etc/systemd/system/tgateway-watchdog.service:

[Unit]
Description=TGateway Watchdog
After=network.target

[Service]
Type=simple
User=tgateway
WorkingDirectory=/opt/TGateway/WatchDog
ExecStart=/opt/TGateway/WatchDog/TGateway.Watchdog
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Replace User, WorkingDirectory, and ExecStart with the actual account and installation directory. The account must be able to read and write the Watchdog, GatewayApp, and Projects directories.

Enable and start the service:

sudo systemctl daemon-reload
sudo systemctl enable tgateway-watchdog
sudo systemctl start tgateway-watchdog
sudo systemctl status tgateway-watchdog

When the status shows active (running), open the Watchdog and TGateway addresses. Create a separate systemd service for Studio only when Studio must run continuously.

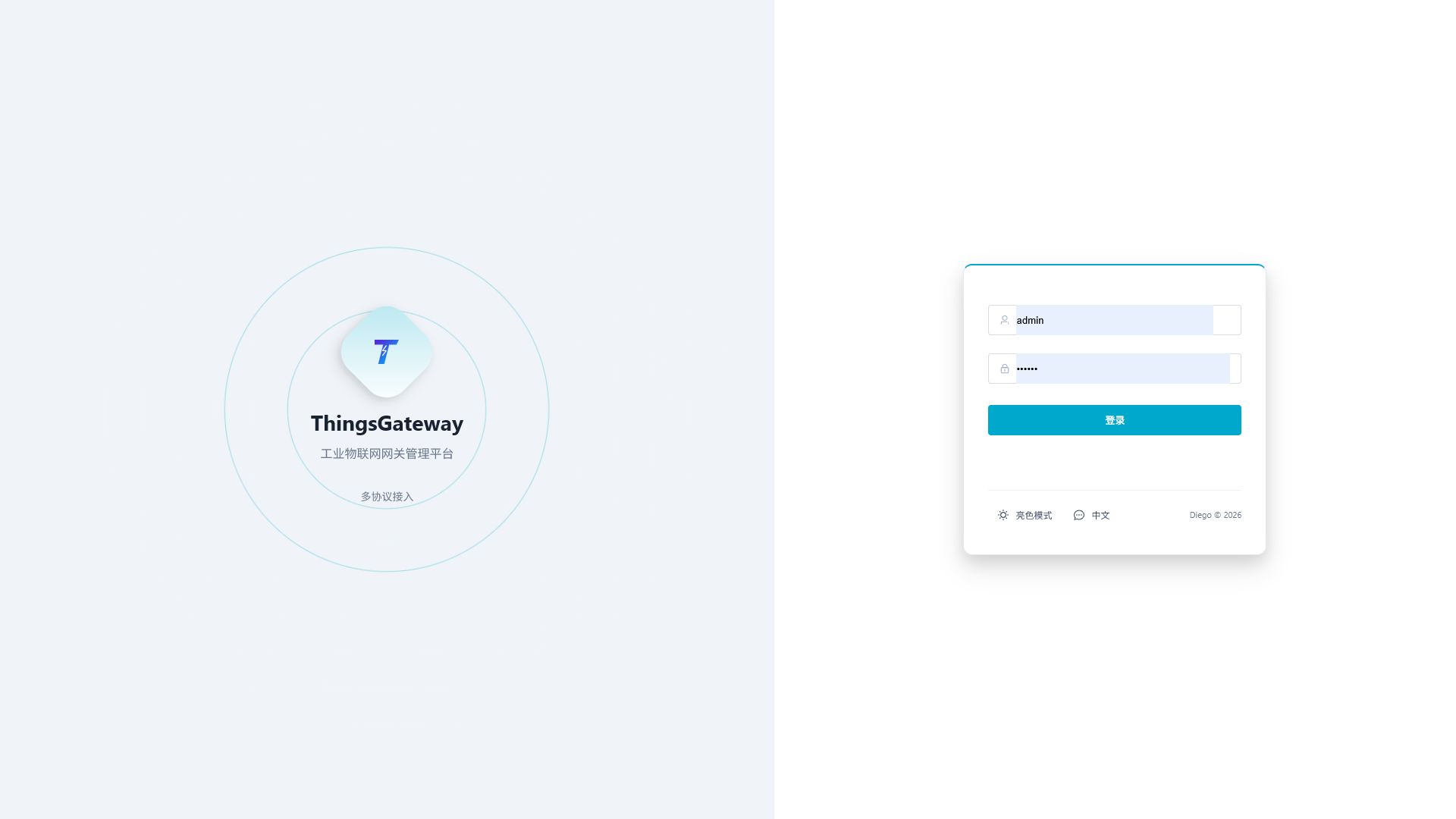

Sign in to TGateway

Open http://<gateway-ip>:6100, enter the account and password, and click Login.

After login, the System Overview page opens.

First checks after login

Step	Page	Check
1	System Overview	The page loads and project information and system resources show no obvious error.
2	Collection Configuration	Channels, devices, and variables are loaded; target devices are not continuously offline.
3	Data Forwarding	Forwarding groups and targets are enabled, and recent activity times continue to update.
4	System Logs	No continuous connection, authentication, read/write, or save errors appear.
5	User Management	Change the default password and assign accounts according to responsibilities.

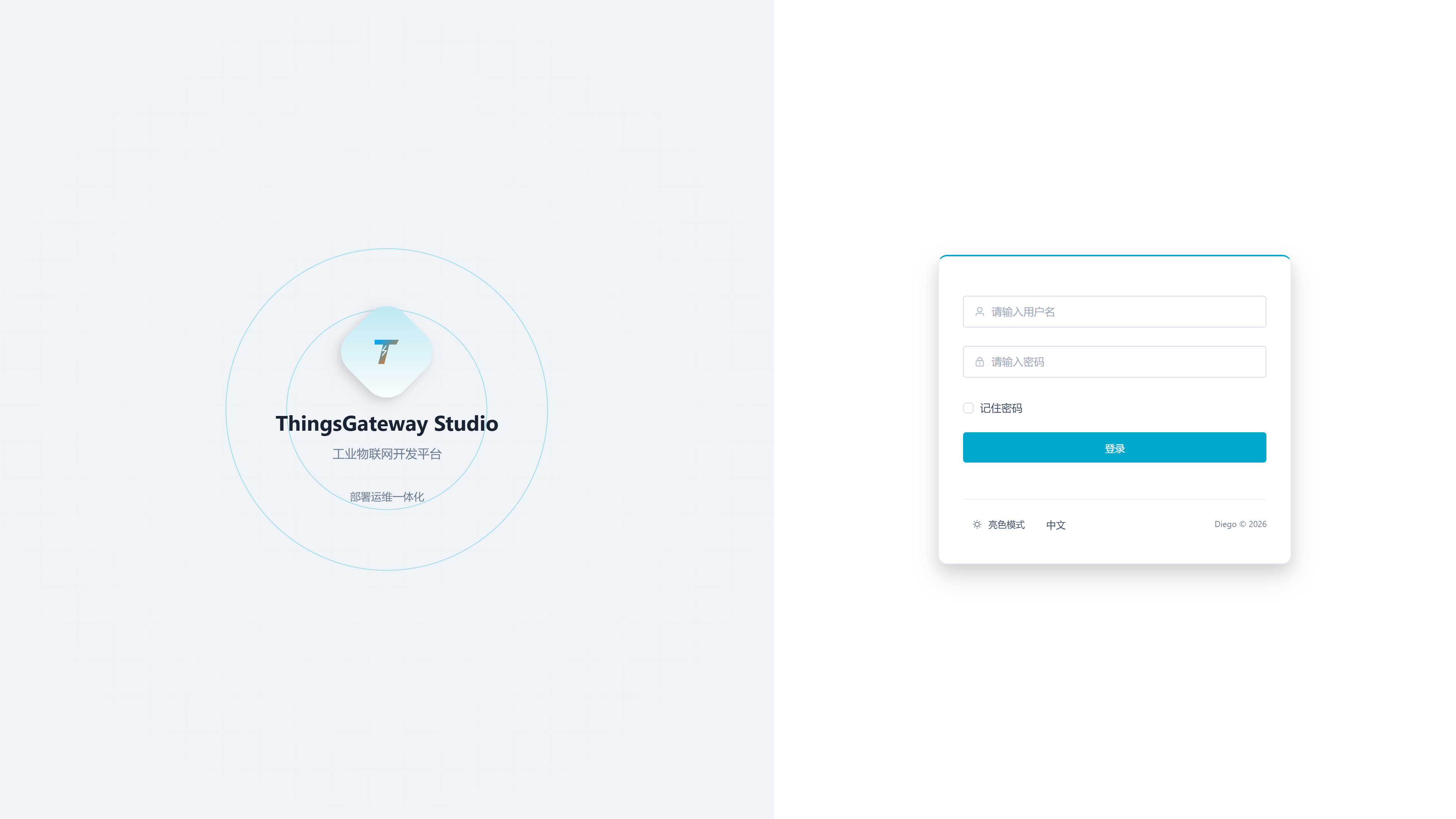

Sign in to Studio (optional)

Open http://<server-ip>:5100 only when Studio is deployed.

In My Projects, create or import a project. Use Watchdog to maintain gateway connections and publish a project.

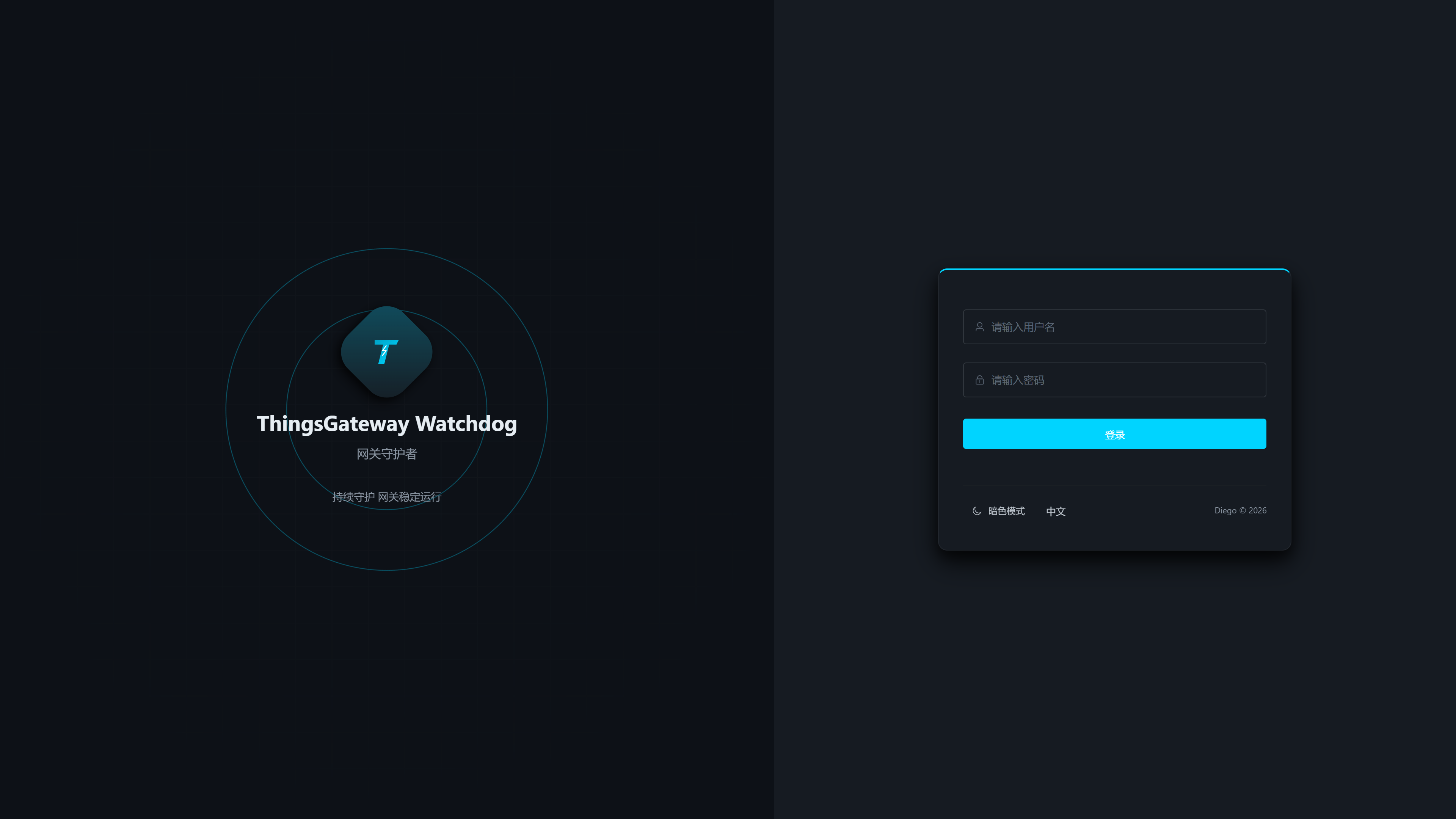

Sign in to Watchdog

Open http://<gateway-ip>:6200 and sign in.

Use the dashboard to view the gateway process, runtime parameters, and logs.

Common problems

Symptom	What to check
The browser cannot open the page	Confirm that the corresponding service is running, the port is free, and the firewall allows the connection.
The page works locally but not through the device IP	Check the listening address, remote-management settings, and network firewall rules.
Login fails	Check the account, password, user status, and accidental spaces in the password.
The page returns to the login screen	Check whether the service has just restarted, then refresh and sign in again.
Studio cannot see Watchdog	From the Studio computer, open the Watchdog address and check network access, account permissions, and Watchdog logs.
TGateway does not start automatically	In Watchdog, check whether a project has been applied and whether the gateway process reported a startup error.

Next steps

• Collection Configuration: Configure channels, devices, and variables, then verify addresses and data types in More Functions → Debug.
• Data Forwarding: Send data to an external system or database.
• TGateway Web Operation Manual: Find functions by task.
• Studio Web Operation Manual: Use Studio for project management and remote publishing.
• Watchdog Web Operation Manual: Manage services, projects, and backups.
